• Déantúsaíocht tsubstráit ard-chruas agus ard-diana, dearadh speisialta uillinn diúltach, próiseáil ábhair roimh agus tar éis cóireála teasa, uilíoch d'ábhair bhog agus chrua araon.
• Is féidir é a úsáid le haghaidh próiseála CNC faoi choinníollacha ardluais, ceo ola, fuarú uisce, fuarú ola agus timpeallachtaí fuaraithe eile.

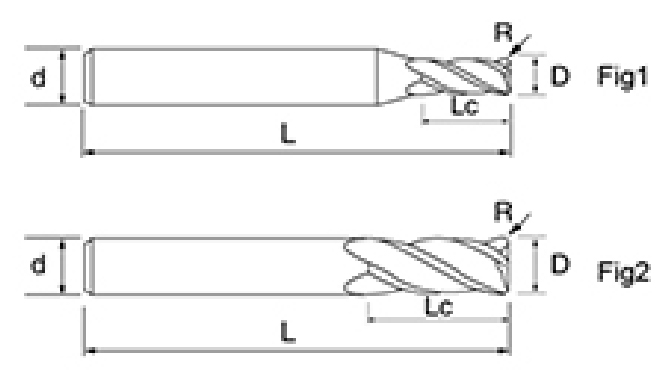

| Níl. | Trastomhas D | R Uillinn R | Fad an fhliúit Lc | Fad Foriomlán L | Shank Dia d | Comhaireamh Blade F |
| NNH-4R-D1-R0.2 | 1 | 0.2 | 3 | 50 | 4 | 4 |
| NNH-4R-D1-R0.2 | 1 | 0.2 | 3 | 50 | 6 | 4 |
| NNH-4R-D1.5-R0.2 | 1.5 | 0.2 | 4 | 50 | 4 | 4 |
| NNH-4R-D1.5-R0.2 | 1.5 | 0.2 | 4 | 50 | 6 | 4 |
| NNH-4R-D2-R0.2 | 2 | 0.2 | 6 | 50 | 4 | 4 |
| NNH-4R-D2-R0.2 | 2 | 0.2 | 6 | 50 | 6 | 4 |
| NNH-4R-D2-R0.5 | 2 | 0.5 | 6 | 50 | 4 | 4 |
| NNH-4R-D2-R0.5 | 2 | 0.5 | 6 | 50 | 6 | 4 |
| NNH-4R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 3 | 4 |
| NNH-4R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 4 | 4 |
| NNH-4R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 6 | 4 |
| NNH-4R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 3 | 4 |
| NNH-4R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 4 | 4 |
| NNH-4R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 6 | 4 |
| NNH-4R-D4-R0.2 | 4 | 0.2 | 8 | 50 | 4 | 4 |
| NNH-4R-D4-R0.2 | 4 | 0.2 | 8 | 75 | 4 | 4 |
| NNH-4R-D4-R0.2 | 4 | 0.2 | 8 | 50 | 6 | 4 |
| NNH-4R-D4-R0.5 | 4 | 0.5 | 8 | 50 | 4 | 4 |
| NNH-4R-D4-R0.5 | 4 | 0.5 | 8 | 75 | 4 | 4 |
| NNH-4R-D4-R0.5 | 4 | 0.5 | 8 | 50 | 6 | 4 |
| NNH-4R-D4-R1 | 4 | 1 | 8 | 50 | 4 | 4 |
| NNH-4R-D4-R1 | 4 | 1 | 8 | 50 | 6 | 4 |
| NNH-4R-D5-R0.5 | 5 | 0.5 | 10 | 50 | 5 | 4 |
| NNH-4R-D5-R0.5 | 5 | 0.5 | 10 | 50 | 6 | 4 |
| NNH-4R-D5-R1 | 5 | 1 | 10 | 50 | 5 | 4 |
| NNH-4R-D5-R1 | 5 | 1 | 10 | 50 | 6 | 4 |
| NNH-4R-D6-R0.2 | 6 | 0.2 | 12 | 50 | 6 | 4 |
| NNH-4R-D6-R0.2 | 6 | 0.2 | 12 | 75 | 6 | 4 |
| NNH-4R-D6-R0.2 | 6 | 0.2 | 12 | 100 | 6 | 4 |
| NNH-4R-D6-R0.5 | 6 | 0.5 | 12 | 50 | 6 | 4 |
| NNH-4R-D6-R0.5 | 6 | 0.5 | 12 | 75 | 6 | 4 |
| NNH-4R-D6-R0.5 | 6 | 0.5 | 12 | 100 | 6 | 4 |
| NNH-4R-D6-R1 | 6 | 1 | 12 | 50 | 6 | 4 |
| NNH-4R-D8-R0.2 | 8 | 0.2 | 16 | 60 | 8 | 4 |
| NNH-4R-D8-R0.2 | 8 | 0.2 | 16 | 75 | 8 | 4 |
| NNH-4R-D8-R0.2 | 8 | 0.2 | 16 | 100 | 8 | 4 |
| NNH-4R-D8-R0.5 | 8 | 0.5 | 16 | 60 | 8 | 4 |
| NNH-4R-D8-R0.5 | 8 | 0.5 | 16 | 75 | 8 | 4 |
| NNH-4R-D8-R0.5 | 8 | 0.5 | 16 | 100 | 8 | 4 |
| NNH-4R-D8-R1 | 8 | 1 | 16 | 60 | 8 | 4 |
| NNH-4R-D10-R0.2 | 10 | 0.2 | 20 | 75 | 10 | 4 |
| NNH-4R-D10-R0.2 | 10 | 0.2 | 20 | 100 | 10 | 4 |
| NNH-4R-D10-R0.3 | 10 | 0.3 | 20 | 75 | 10 | 4 |
| NNH-4R-D10-R0.5 | 10 | 0.5 | 20 | 75 | 10 | 4 |
| NNH-4R-D10-R0.5 | 10 | 0.5 | 20 | 100 | 10 | 4 |
| NNH-4R-D10-R1 | 10 | 1 | 20 | 75 | 10 | 4 |
| NNH-4R-D10-R1.5 | 10 | 1.5 | 20 | 75 | 10 | 4 |
| NNH-4R-D10-R2 | 10 | 2 | 20 | 75 | 10 | 4 |
| NNH-4R-D12-R0.5 | 12 | 0.2 | 24 | 75 | 12 | 4 |
| NNH-4R-D12-R0.5 | 12 | 0.2 | 24 | 100 | 12 | 4 |
| NNH-4R-D12-R0.5 | 12 | 0.5 | 24 | 75 | 12 | 4 |
| NNH-4R-D12-R0.5 | 12 | 0.5 | 24 | 100 | 12 | 4 |
| NNH-4R-D12-R1 | 12 | 1 | 24 | 75 | 12 | 4 |
| NNH-4R-D12-R2 | 12 | 2 | 24 | 75 | 12 | 4 |
| NNH-4R-D12-R3 | 12 | 3 | 24 | 75 | 12 | 4 |
| NNH-4R-D16-R1 | 16 | 1 | 35 | 100 | 16 | 4 |
| NNH-4R-D16-R2 | 16 | 2 | 35 | 100 | 16 | 4 |
| NNH-4R-D16-R3 | 16 | 3 | 35 | 100 | 16 | 4 |
| NNH-4R-D20-R1 | 20 | 1 | 40 | 100 | 20 | 4 |
| NNH-4R-D20-R2 | 20 | 2 | 40 | 100 | 20 | 4 |
| NNH-4R-D20-R3 | 20 | 3 | 40 | 100 | 20 | 4 |
| Ábhair Phróiseáilte | Cruach Réamh-Chruaite 40~50HRC | Cruach Cruaite 50 ~ 60HRC | Cruach Cruaite 60~68HRC | |||
| Luas Gearrtha | 300m/nim | 150m/nim | 100m/nim | |||
| Trastomhas (mm) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) |
| 3 | 32000 | 1225 | 16000 | 610 | 11000 | 420 |
| 4 | 24000 | 1500 | 12000 | 745 | 8000 | 500 |
| 5 | 19000 | 1630 | 9500 | 815 | 6400 | 550 |
| 6 | 16000 | 1850 | 8000 | 925 | 5300 | 610 |
| 8 | 12000 | 1850 | 6000 | 925 | 4000 | 610 |
| 10 | 9600 | 1850 | 4800 | 925 | 3200 | 610 |
| 12 | 8000 | 1920 | 4000 | 960 | 2700 | 648 |
| 16 | 6000 | 1440 | 3000 | 720 | 2000 | 480 |
| Doimhneacht Ghearrtha Uasta |  |  |  | |||
1. Bain úsáid as trealamh agus daingneáin ardchruinneas agus ard-rigidity, le do thoil.
2. Nuair a bhíonn rigidity an uirlis meaisín agus suiteáil workpiece bocht, d'fhéadfadh creathadh agus fuaim neamhghnácha tarlú. Sa chás seo, ba cheart an luas agus an ráta beathaithe sa tábla thuas a laghdú bliain ar bhliain.
3. Bain úsáid as fuarú aer nó MQL (íosmhéid fuaraithe ceo ola).
4. Moltar muilleoireacht seicheamhach a úsáid le haghaidh muilleoireachta taobh.
5. Íoslaghdaigh fad fionraí na huirlise oiread agus is féidir gan cur isteach.
| Sraith Uirlisí | Trastomhas | Ga | Ga cúinne | Fad fliúit | Fad éifeachtach | Fad iomlán | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| Muilte Deiridh Carbide Ardluais agus Ard-Chruas NNH | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /- 0. 005 | CR0.05~CR0.5 | /- 0. 005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4~D10 | -0.003 -0.015 | R3~R5 | /- 0. 005 | CR1.0~CR3.0 | /- 0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /- 0.008 | |||||||

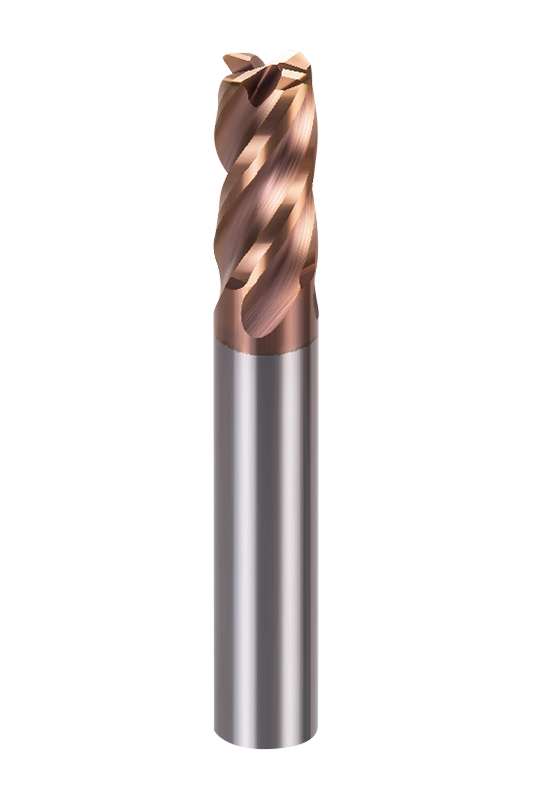

Soláthraíonn muilte deireadh srón bhabhta ardfheidhmíochta NNH-4R 4 fheadóg mhór éagsúlacht sonraíochtaí agus méideanna, ar féidir iad a chomhcheangal go solúbtha de réir riachtanais phróiseála éagsúla chun fo-mhúnlaí comhfhreagracha a fhoirmiú chun cásanna iarratais éagsúla a chomhlíonadh. Cibé an bhfuil sé ina phróiseáil páirteanna beaga cruinneas nó gearradh éifeachtach ar phíosaí oibre mórmhéide, is féidir leat an méid uirlisí cuí a roghnú go saor, ag cur san áireamh éifeachtúlacht agus cobhsaíocht.
Féadann a struchtúr srón babhta speisialta in éineacht leis an dearadh ceithre imeall an t-ualach gearrtha a scaipeadh go héifeachtach agus creathadh agus caitheamh uirlisí a laghdú. Is féidir leis an gcruth seo timpeallacht ghearradh níos cobhsaí a chinntiú le linn muilleoireachta ardluais, atá oiriúnach go háirithe do riachtanais phróiseála ábhair ard-chruas. Is féidir leis an gceann gearrthóra srón babhta a chinntiú freisin go bhfuil bailchríoch dromchla agus cruinneas tríthoiseach i leathchríochnú agus ag críochnú.
Trí theicneolaíocht sciath chun cinn agus próiseas meilt beachtas, tá cruas ard agus friotaíocht caitheamh den scoth faighte ag an uirlis. Cuireann an meascán de sciath AlTiSiN ardfheidhmíochta agus (0.4μm) foshraith cáithníní ultra-fíneáil ar chumas sé saol seirbhíse fada a choinneáil i dtimpeallacht ardteochta agus ardluais gearrtha, agus feidhmíocht chobhsaí agus cruinneas a chothabháil le linn próiseála. Cinntíonn rialú cáilíochta dian agus próiseas déantúsaíochta ardchruinneas feidhmíocht iontaofa an uirlis faoi choinníollacha crua.
Tá muilte deireadh srón bhabhta ardfheidhmíochta NNH-4R 4 fheadóg oiriúnach chun éagsúlacht ábhar a phróiseáil, lena n-áirítear cruach ard-chruas, cruach cóimhiotail, cruach múnla agus cruach dhosmálta. In iarratais muilleoireachta ardluais, cuidíonn a chruas ard agus friotaíocht teasa le géire agus cobhsaíocht an lann a choimeád, feabhas a chur ar éifeachtacht táirgthe agus saol seirbhíse an uirlis a leathnú.
