• Feabhsaíonn dearadh an lann ghearr go mór friotaíocht caitheamh an uirlis agus féadann sé cáilíocht dromchla níos airde a bhaint amach don phíosa oibre.
• Úsáidtear go príomha é chun ábhair chruach chruaite HRC45~70 a phróiseáil, go háirithe le haghaidh páirteanna múnla cruinneas a dteastaíonn próiseáil fhadtéarmach orthu.
| Níl. | Trastomhas D | R Uillinn R | Fad an fhliúit Lc | Fad Foriomlán L | Shank Dia d | Comhaireamh Blade F |
| NNCH-2B-D1-L2 | 1 | 0.5 | 2 | 50 | 4 | 2 |
| NNCH-2B-D1.5-L3 | 1.5 | 0.75 | 3 | 50 | 4 | 2 |
| NNCH-2B-D1.5-L3 | 1.5 | 0.75 | 3 | 50 | 6 | 2 |
| NNCH-2B-D2-L4 | 2 | 1 | 4 | 50 | 4 | 2 |
| NNCH-2B-D2-L4 | 2 | 1 | 4 | 50 | 6 | 2 |
| NNCH-2B-D2.5-L5 | 2.5 | 1.25 | 5 | 50 | 4 | 2 |
| NNCH-2B-D2.5-L5 | 2.5 | 1.25 | 5 | 50 | 6 | 2 |
| NNCH-2B-D3-L6 | 3 | 1.5 | 6 | 50 | 4 | 2 |
| NNCH-2B-D3-L6 | 3 | 1.5 | 6 | 50 | 6 | 2 |
| NNCH-2B-D3.5-L7 | 3.5 | 1.75 | 7 | 50 | 4 | 2 |
| NNCH-2B-D3.5-L7 | 3.5 | 1.75 | 7 | 50 | 6 | 2 |
| NNCH-2B-D4-L8 | 4 | 2 | 8 | 50 | 4 | 2 |
| NNCH-2B-D4-L8 | 4 | 2 | 8 | 50 | 6 | 2 |
| NNCH-2B-D5-L9 | 5 | 2.5 | 9 | 50 | 6 | 2 |
| NNCH-2B-D6-L9 | 6 | 3 | 9 | 50 | 6 | 2 |
| NNCH-2B-D8-L12 | 8 | 4 | 12 | 60 | 8 | 2 |
| NNCH-2B-D10-L15 | 10 | 5 | 15 | 75 | 10 | 2 |
| NNCH-2B-D12-L18 | 12 | 6 | 18 | 75 | 12 | 2 |
| NNCH-2B-D4-L8 | 4 | 2 | 8 | 75 | 4 | 2 |
| NNCH-2B-D4-L8 | 4 | 2 | 8 | 75 | 6 | 2 |
| NNCH-2B-D6-L9 | 6 | 3 | 9 | 75 | 6 | 2 |
| NNCH-2B-D8-L12 | 8 | 4 | 12 | 75 | 8 | 2 |
| NNCH-2B-D6-L9 | 6 | 3 | 9 | 100 | 6 | 2 |
| NNCH-2B-D8-L12 | 8 | 4 | 12 | 100 | 8 | 2 |
| NNCH-2B-D10-L15 | 10 | 5 | 15 | 100 | 10 | 2 |
| NNCH-2B-D12-L18 | 12 | 6 | 18 | 100 | 12 | 2 |
| Ábhair Phróiseáilte | Cruach Réamh-Chruaite 40~50HRC | Cruach Cruaite 50 ~ 60HRC | Cruach Cruaite 60~68HRC | |||||||||
| Ga Ceann Liathróid (mm) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | a lch (mm) | a e (mm) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | a lch (mm) | a e (mm) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | a lch (mm) | a e (mm) |
| R0.5 | 40000 | 1900 | 0.01 | 0.05 | 36000 | 1500 | 0.01 | 0.05 | 32000 | 1400 | 0.01 | 0.05 |
| R1.0 | 33000 | 3100 | 0.02 | 0.075 | 26000 | 2100 | 0.02 | 0.075 | 24000 | 2000 | 0.02 | 0.075 |
| R1.5 | 29000 | 4100 | 0.03 | 0.1 | 23000 | 2900 | 0.03 | 0.1 | 21000 | 2600 | 0.03 | 0.1 |
| R2.0 | 22000 | 3900 | 0.04 | 0.15 | 17000 | 2500 | 0.04 | 0.15 | 15500 | 2100 | 0.04 | 0.15 |
| R2.5 | 17500 | 3500 | 0.05 | 0.15 | 13500 | 2200 | 0.05 | 0.15 | 13000 | 2000 | 0.05 | 0.15 |
| R3.0 | 15000 | 3100 | 0.06 | 0.2 | 11500 | 1700 | 0.06 | 0.2 | 10500 | 1500 | 0.06 | 0.2 |
| R4.0 | 11000 | 2500 | 0.08 | 0.25 | 8600 | 1600 | 0.08 | 0.25 | 8000 | 1400 | 0.08 | 0.25 |
| R5.0 | 9000 | 2000 | 0.1 | 0.3 | 7000 | 1400 | 0.1 | 0.3 | 6000 | 1200 | 0.1 | 0.3 |
| R6.0 | 7500 | 1800 | 0.1 | 0.35 | 5700 | 1300 | 0.1 | 0.35 | 5300 | 1200 | 0.1 | 0.35 |
| R8.0 | 5500 | 1800 | 0.1 | 0.4 | 4300 | 1300 | 0.1 | 0.4 | 4000 | 1200 | 0.1 | 0.4 |
| R10.0 | 4500 | 1800 | 0.1 | 0.5 | 3500 | 1300 | 0.1 | 0.5 | 3200 | 1200 | 0.1 | 0.5 |

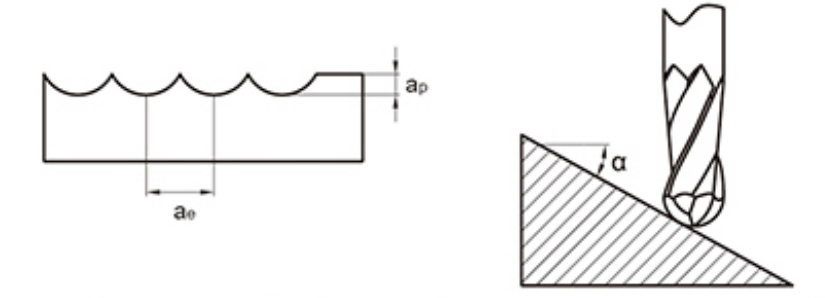

| Doimhneacht Ghearrtha Uasta |  | |||||||||||
1. Bain úsáid as trealamh agus daingneáin ardchruinneas agus ard-rigidity, le do thoil.
2. Nuair a bhíonn rigidity an uirlis meaisín agus suiteáil workpiece bocht, d'fhéadfadh creathadh agus fuaim neamhghnácha tarlú. Sa chás seo, ba cheart an luas agus an ráta beathaithe sa tábla thuas a laghdú bliain ar bhliain.
3. Bain úsáid as fuarú aer nó MQL (íosmhéid fuaraithe ceo ola).
4. Moltar muilleoireacht seicheamhach a úsáid le haghaidh muilleoireachta taobh.
5. Íoslaghdaigh fad fionraí na huirlise oiread agus is féidir gan cur isteach.
| Sraith Uirlisí | Trastomhas | Ga | Ga cúinne | Fad fliúit | Fad éifeachtach | Fad iomlán | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNCH Muilte Deiridh Carbide Ultra Crua agus Ard-Beachtais | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /- 0. 005 | CR0.05~CR0.5 | /- 0. 005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4~D10 | -0.003 -0.015 | R3~R5 | /- 0. 005 | CR1.0~CR3.0 | /- 0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /- 0.008 | |||||||

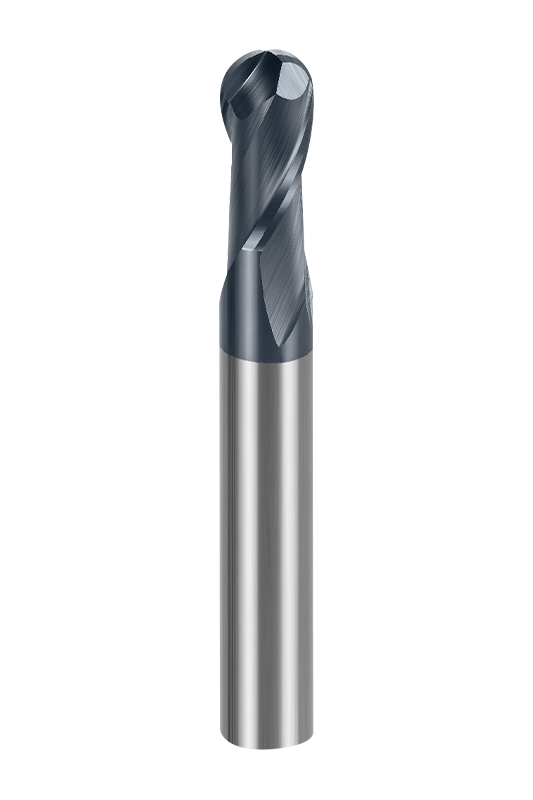

Tá muilte deireadh srón liathróid fheadóg mhór NNCH-2B ultra crua 2 ar fáil i méideanna éagsúla, idir 1mm agus 12mm ar trastomhas, agus is féidir iad a mheaitseáil le héagsúlacht faid lann agus faid iomlána de réir riachtanais éagsúla chun freastal ar riachtanais solúbthachta meaisínithe beachtas. Mar gheall ar an rogha saor in aisce de shonraíochtaí agus samhlacha éagsúla tá sé oiriúnach do chásanna éagsúla meaisínithe, rud a chinntíonn inoiriúnaitheacht níos airde i dtascanna meaisínithe beachtais.
Déanann an dearadh cruth deireadh liathróid uillinn gearrtha an uirlis a uasmhéadú, rud a fhágann go bhfuil sé níos fearr i meaisínithe dromchla casta, go háirithe oiriúnach do mhonarú múnla, meaisínithe páirteanna cruinneas agus radhairc eile a dteastaíonn ardchríochnú agus cruinneas ard. Cuidíonn dearadh uillinn helix 30 ° le friotaíocht gearrtha a laghdú agus le héifeachtúlacht bhaint sliseanna a fheabhsú, rud a fheabhsóidh cobhsaíocht meaisínithe agus saol na huirlisí.
Tá an gearrthóir muilleoireachta déanta as ábhar chomhdhúile micrea-cháithníní ultra-fíneáil, in éineacht le próiseas sciath ard-chruinneas, rud a fheabhsaíonn go mór friotaíocht caitheamh agus feidhmíocht frith-chipping. Is féidir leis an cruas iomlán HRC≤65 a bhaint amach, rud a chinntíonn géire agus cobhsaíocht den scoth nuair a bhíonn ábhair ard-chruas á meaisínithe.
Tá an táirge seo oiriúnach do raon leathan ábhar próiseála, lena n-áirítear cruach carbóin, cruach cóimhiotail, cruach réamh-chruaite (HRC35-45), cruach cruaite (HRC45-65), cruach teaschóireáilte ard-chruas, srl.
