• Tá an gearrthóir muilleoireachta uilíoch oiriúnach do chóireáil teasa ar gach sraith ábhar cruach. Tá dearadh struchtúir U-groove aige agus tá sé oiriúnach le haghaidh garbh agus críochnú.
• Tá sé oiriúnach freisin chun ábhair neamhchruach agus alúmanaim a phróiseáil. Tá raon iomlán sonraíochtaí agus samhlacha aige agus raon leathan úsáidí.

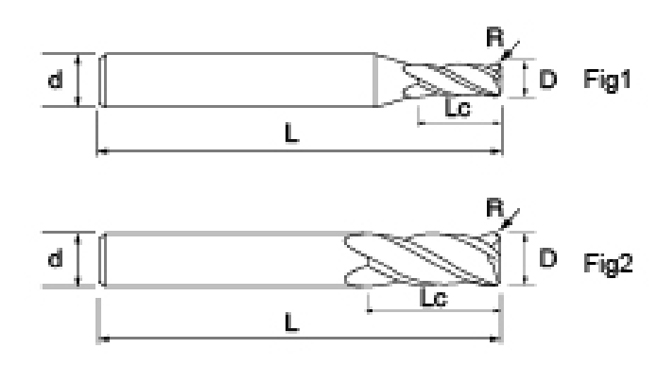

| Níl. | Trastomhas D | R Uillinn R | Fad an fhliúit Lc | Fad Foriomlán L | Shank Dia d | Comhaireamh Blade F |
| NNC-4R-D1-R0.2 | 1 | 0.2 | 3 | 50 | 4 | 4 |
| NNC-4R-D1-R0.2 | 1 | 0.2 | 3 | 50 | 6 | 4 |
| NNC-4R-D1.5-R0.2 | 1.5 | 0.2 | 4 | 50 | 4 | 4 |
| NNC-4R-D1.5-R0.2 | 1.5 | 0.2 | 4 | 50 | 6 | 4 |
| NNC-4R-D2-R0.2 | 2 | 0.2 | 6 | 50 | 4 | 4 |
| NNC-4R-D2-R0.2 | 2 | 0.2 | 6 | 50 | 6 | 4 |
| NNC-4R-D2-R0.5 | 2 | 0.5 | 6 | 50 | 4 | 4 |
| NNC-4R-D2-R0.5 | 2 | 0.5 | 6 | 50 | 6 | 4 |
| NNC-4R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 3 | 4 |
| NNC-4R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 4 | 4 |
| NNC-4R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 6 | 4 |
| NNC-4R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 3 | 4 |
| NNC-4R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 4 | 4 |
| NNC-4R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 6 | 4 |
| NNC-4R-D4-R0.2 | 4 | 0.2 | 10 | 50 | 4 | 4 |
| NNC-4R-D4-R0.2 | 4 | 0.2 | 10 | 75 | 4 | 4 |
| NNC-4R-D4-R0.2 | 4 | 0.2 | 10 | 100 | 4 | 4 |
| NNC-4R-D4-R0.2 | 4 | 0.2 | 10 | 50 | 6 | 4 |
| NNC-4R-D4-R0.5 | 4 | 0.5 | 10 | 50 | 4 | 4 |
| NNC-4R-D4-R0.5 | 4 | 0.5 | 10 | 75 | 4 | 4 |
| NNC-4R-D4-R0.5 | 4 | 0.5 | 10 | 100 | 4 | 4 |
| NNC-4R-D4-R0.5 | 4 | 0.5 | 10 | 50 | 6 | 4 |
| NNC-4R-D4-R1 | 4 | 1 | 10 | 50 | 4 | 4 |
| NNC-4R-D4-R1 | 4 | 1 | 10 | 75 | 4 | 4 |
| NNC-4R-D4-R1 | 4 | 1 | 10 | 100 | 4 | 4 |
| NNC-4R-D4-R1 | 4 | 1 | 10 | 50 | 6 | 4 |
| NNC-4R-D5-R0.5 | 5 | 0.5 | 13 | 50 | 5 | 4 |
| NNC-4R-D5-R0.5 | 5 | 0.5 | 13 | 50 | 6 | 4 |
| NNC-4R-D5-R1 | 5 | 1 | 13 | 50 | 5 | 4 |
| NNC-4R-D5-R1 | 5 | 1 | 13 | 50 | 6 | 4 |
| NNC-4R-D6-R0.2 | 6 | 0.2 | 16 | 50 | 6 | 4 |
| NNC-4R-D6-R0.2 | 6 | 0.2 | 16 | 75 | 6 | 4 |
| NNC-4R-D6-R0.2 | 6 | 0.2 | 16 | 100 | 6 | 4 |
| NNC-4R-D6-R0.5 | 6 | 0.5 | 16 | 50 | 6 | 4 |
| NNC-4R-D6-R0.5 | 6 | 0.5 | 16 | 75 | 6 | 4 |
| NNC-4R-D6-R0.5 | 6 | 0.5 | 16 | 100 | 6 | 4 |
| NNC-4R-D6-R1 | 6 | 1 | 16 | 50 | 6 | 4 |
| NNC-4R-D8-R0.2 | 8 | 0.2 | 20 | 60 | 8 | 4 |
| NNC-4R-D8-R0.2 | 8 | 0.2 | 20 | 75 | 8 | 4 |
| NNC-4R-D8-R0.2 | 8 | 0.2 | 20 | 100 | 8 | 4 |
| NNC-4R-D8-R0.2 | 8 | 0.2 | 20 | 150 | 8 | 4 |
| NNC-4R-D8-R0.3 | 8 | 0.3 | 20 | 60 | 8 | 4 |
| NNC-4R-D8-R0.5 | 8 | 0.5 | 20 | 60 | 8 | 4 |
| NNC-4R-D8-R0.5 | 8 | 0.5 | 20 | 75 | 8 | 4 |
| NNC-4R-D8-R0.5 | 8 | 0.5 | 20 | 100 | 8 | 4 |
| NNC-4R-D8-R0.5 | 8 | 0.5 | 20 | 150 | 8 | 4 |
| NNC-4R-D8-R1 | 8 | 1 | 20 | 60 | 8 | 4 |
| NNC-4R-D10-R0.2 | 10 | 0.2 | 25 | 75 | 10 | 4 |
| NNC-4R-D10-R0.2 | 10 | 0.2 | 25 | 100 | 10 | 4 |
| NNC-4R-D10-R0.3 | 10 | 0.3 | 25 | 75 | 10 | 4 |
| NNC-4R-D10-R0.5 | 10 | 0.5 | 25 | 75 | 10 | 4 |
| NNC-4R-D10-R0.5 | 10 | 0.5 | 25 | 100 | 10 | 4 |
| NNC-4R-D10-R0.5 | 10 | 0.5 | 25 | 150 | 10 | 4 |
| NNC-4R-D10-R1 | 10 | 1 | 25 | 75 | 10 | 4 |
| NNC-4R-D10-R1.5 | 10 | 1.5 | 25 | 75 | 10 | 4 |
| NNC-4R-D10-R2 | 10 | 2 | 25 | 75 | 10 | 4 |
| NNC-4R-D12-R0.5 | 12 | 0.5 | 30 | 75 | 12 | 4 |
| NNC-4R-D12-R0.5 | 12 | 0.5 | 30 | 100 | 12 | 4 |
| NNC-4R-D12-R0.5 | 12 | 0.5 | 30 | 150 | 12 | 4 |
| NNC-4R-D12-R1 | 12 | 1 | 30 | 75 | 12 | 4 |
| NNC-4R-D12-R2 | 12 | 2 | 30 | 75 | 12 | 4 |
| NNC-4R-D12-R3 | 12 | 3 | 30 | 75 | 12 | 4 |
| NNC-4R-D16-R0.5 | 16 | 0.5 | 45 | 100 | 16 | 4 |
| NNC-4R-D16-R0.5 | 16 | 0.5 | 45 | 150 | 16 | 4 |
| NNC-4R-D16-R1 | 16 | 1 | 45 | 100 | 16 | 4 |
| NNC-4R-D16-R2 | 16 | 2 | 45 | 100 | 16 | 4 |
| NNC-4R-D16-R3 | 16 | 3 | 45 | 100 | 16 | 4 |
| NNC-4R-D20-R0.5 | 20 | 0.5 | 45 | 100 | 16 | 4 |
| NNC-4R-D20-R0.5 | 20 | 0.5 | 45 | 150 | 16 | 4 |
| NNC-4R-D20-R1 | 20 | 1 | 50 | 100 | 20 | 4 |
| NNC-4R-D20-R2 | 20 | 2 | 50 | 100 | 20 | 4 |
| NNC-4R-D20-R3 | 20 | 3 | 50 | 100 | 20 | 4 |
| Ábhair Phróiseáilte | Iarann Teilgthe Iarann Teilgthe Nodular | Cruach Carbóin, Cruach Alloy ~750N/mm² | Cruach Carbóin, Cruach Alloy ~30HRC | Cruach Réamh-Chruaite, Cruach Múchta agus Tempered ~40HRC | Cruach Dhosmálta | Cruach Réamh-Chruaite, Cruach Múchta agus Tempered ~50HRC | ||||||
| Trastomhas (mm) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) |
| 3 | 14000 | 820 | 14000 | 820 | 13000 | 755 | 10600 | 630 | 7500 | 145 | 8500 | 490 |
| 4 | 10800 | 840 | 10800 | 840 | 10000 | 770 | 8000 | 640 | 5500 | 145 | 6500 | 500 |
| 5 | 8200 | 880 | 8200 | 880 | 7600 | 810 | 6400 | 670 | 4500 | 145 | 5000 | 530 |
| 6 | 7000 | 900 | 7000 | 900 | 6400 | 830 | 5300 | 690 | 3700 | 160 | 4200 | 540 |
| 8 | 5200 | 890 | 5200 | 890 | 4800 | 815 | 4000 | 680 | 2800 | 160 | 3200 | 550 |
| 10 | 4200 | 880 | 4200 | 880 | 3800 | 810 | 3200 | 670 | 2200 | 160 | 2500 | 520 |
| 12 | 3500 | 880 | 3500 | 880 | 3200 | 810 | 2650 | 670 | 1850 | 160 | 2100 | 520 |
| 16 | 2600 | 680 | 2600 | 680 | 2400 | 630 | 2000 | 525 | 1400 | 120 | 1600 | 490 |

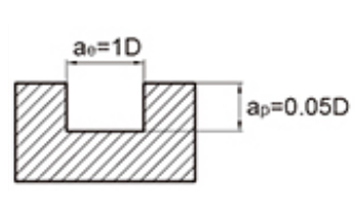

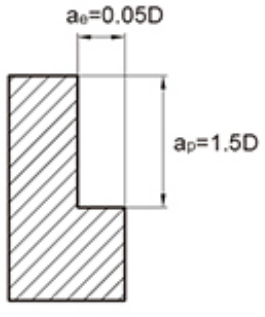

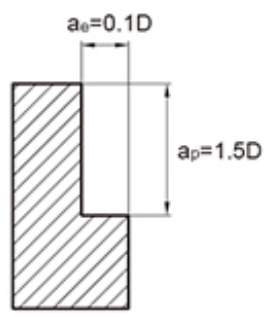

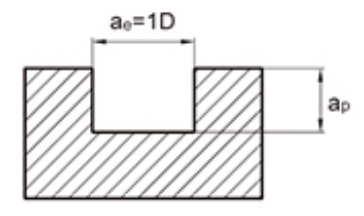

| Doimhneacht Ghearrtha Uasta |  |  | ||||||||||
 | Trastomhas Uirlis | Gearradh Doimhneacht ap |  | |||||||||
∅1| 0. 15d | | |||||||||||
∅3| 0.3D | | |||||||||||
1. Taispeánann an tábla thuas na luachanna caighdeánacha maidir le meaisínithe muilleoireachta taobh. Nuair a ghearradh grooves leis an uirlis, ba chóir go mbeadh an luas 50% ~ 70% den tábla thuas, agus ba cheart go mbeadh an ráta beatha 40% ~ 60% mar an luach caighdeánach.
2. Bain úsáid as uirlisí meaisín ardchruinneas agus sealbhóirí uirlisí.
3. Bain úsáid as fuarú aeir nó sreabhán gearrtha nach lú an seans deataigh a tháirgeadh.
4. Moltar muilleoireacht seicheamhach a úsáid le haghaidh muilleoireachta taobh.
Nuair a bhíonn rigidity an uirlis meaisín agus suiteáil workpiece bocht, d'fhéadfadh creathadh agus fuaim neamhghnácha tarlú. Sa chás seo, ba cheart an luas agus an ráta beathaithe sa tábla thuas a laghdú bliain ar bhliain.
6. Íoslaghdaigh fad an bharrachais uirlisí oiread agus is féidir gan cur isteach.
| Sraith Uirlisí | Trastomhas | Ga | Ga cúinne | Fad an fhliúit | Fad Éifeachtach | Fad Foriomlán | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| Gearrthóirí Muilleoireachta Carbide Uilíoch NNC | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /- 0. 005 | CR0.05~CR0.5 | /- 0. 005 | 0 0.2 | 0 0.3 | 0 0.5 | h5 |
| D1.0~D4.0 | 0 -0.008 | 0 0.3 | 0 0.5 | |||||||
| D1.0~D3.5 | 0 -0.008 | R0.5~R1.75 | /- 0. 005 | CR0.1~CR0.5 | /- 0. 005 | 0 0.3 | 0 0.5 | 0 0.5 | h6 | |
| D4.0~D11.0 | 0 -0.012 | R2.0~R5.0 | /- 0.008 | CR1.0~CR3.0 | /- 0.008 | 0 0.5 | ||||
| D12.0~D20.0 | 0 -0.015 | R6.0~R10.0 | /- 0.01 | |||||||

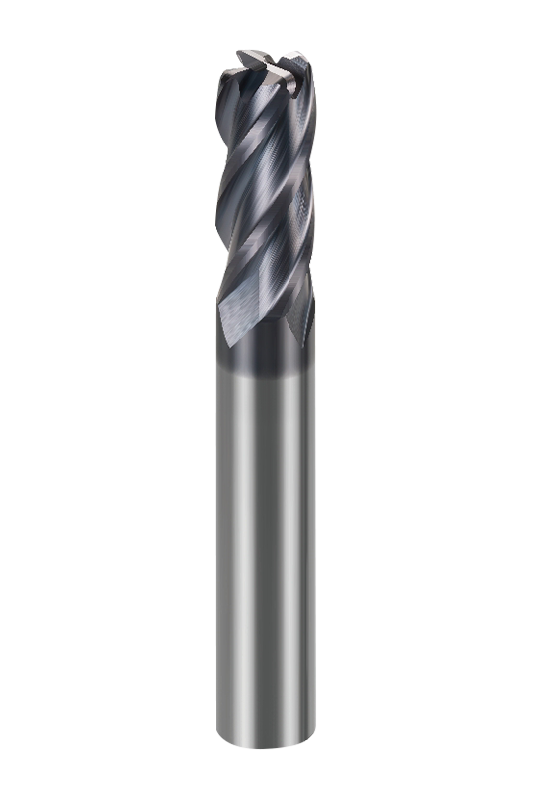

Tá an gearrthóir muilleoireachta srón babhta ceithre fhliúit NNC-4R ar fáil i méideanna éagsúla, a chlúdaíonn trastomhais uirlisí éagsúla, fad lann agus raonta uillinn R, agus is féidir iad a mheaitseáil go solúbtha le fo-mhúnlaí éagsúla chun freastal ar riachtanais phróiseála éagsúla. Is féidir le gach fo-mhúnla feidhmiú go cobhsaí ar ócáidí éagsúla ó chríochnú go garbh, rud a fhágann go mbeidh an próiseas próiseála níos spriocdhírithe agus níos éifeachtaí.
Glacann sé cruth lann srón cruinn atá deartha go speisialta chun an creathadh gearrtha a laghdú go héifeachtach agus feabhas a chur ar chríochnú an dromchla meaisínithe. Ní hamháin go bhfeabhsaíonn an struchtúr 4 fhliúit cumas an uirlis a bhaint sliseanna, ach freisin feabhsaítear rigidity an lann, ag soláthar tacaíocht níos iontaofa do ghearradh leanúnach ardluais.
Tríd an meascán de mheilt ard-chruinneas agus teicneolaíocht sciath chun cinn, tá feidhmíocht den scoth ag muilte deireadh srón babhta feadóg NNC-4R 4 i friotaíocht caitheamh agus friotaíocht teasa. Is féidir leis an bpróiseas déantúsaíochta beacht an earráid méid uirlisí a íoslaghdú, agus go n-éireoidh an sciath cuimilte agus teas a ghearradh go héifeachtach, ionas gur féidir saol an uirlis a leathnú agus oibriú cobhsaí a bhaint amach faoi pharaiméadair gearrtha níos airde.
Tá an gearrthóir muilleoireachta srón cruinn seo oiriúnach chun éagsúlacht ábhar coitianta a phróiseáil, mar shampla cruach carbóin, cruach dhosmálta, cruach múnla agus cóimhiotal copair, agus féadann sé dul i ngleic le cruas níos airde go pointe áirithe. I gcás feidhmeanna meaisínithe beachtas a éilíonn ardchaighdeán dromchla, is féidir le NNC-4R bailchríoch táirge críochnaithe den scoth. a sholáthar freisin
