• Tá an gearrthóir muilleoireachta uilíoch oiriúnach do chóireáil teasa ar gach sraith ábhar cruach. Tá dearadh struchtúir U-groove aige agus tá sé oiriúnach le haghaidh garbh agus críochnú.
• Tá sé oiriúnach freisin chun ábhair neamhchruach agus alúmanaim a phróiseáil. Tá raon iomlán sonraíochtaí agus samhlacha aige agus raon leathan úsáidí.

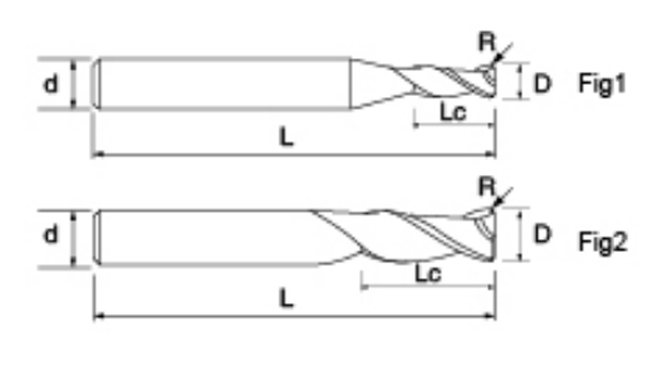

| Níl. | Trastomhas D | R Uillinn R | Fad an fhliúit Lc | Fad Foriomlán L | Shank Dia d | Comhaireamh Blade F |
| NNC-2R-D1-R0.2 | 1 | 0.2 | 3 | 50 | 4 | 2 |
| NNC-2R-D1-R0.2 | 1 | 0.2 | 3 | 50 | 6 | 2 |
| NNC-2R-D1.5-R0.2 | 1.5 | 0.2 | 4 | 50 | 4 | 2 |
| NNC-2R-D1.5-R0.2 | 1.5 | 0.2 | 4 | 50 | 6 | 2 |
| NNC-2R-D2-R0.2 | 2 | 0.2 | 6 | 50 | 4 | 2 |
| NNC-2R-D2-R0.2 | 2 | 0.2 | 6 | 50 | 6 | 2 |
| NNC-2R-D2-R0.5 | 2 | 0.5 | 6 | 50 | 4 | 2 |
| NNC-2R-D2-R0.5 | 2 | 0.5 | 6 | 50 | 6 | 2 |
| NNC-2R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 3 | 2 |
| NNC-2R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 4 | 2 |
| NNC-2R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 6 | 2 |
| NNC-2R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 3 | 2 |
| NNC-2R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 4 | 2 |
| NNC-2R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 6 | 2 |
| NNC-2R-D4-R0.2 | 4 | 0.2 | 10 | 50 | 4 | 2 |
| NNC-2R-D4-R0.2 | 4 | 0.2 | 10 | 50 | 6 | 2 |
| NNC-2R-D4-R0.5 | 4 | 0.5 | 10 | 50 | 4 | 2 |
| NNC-2R-D4-R0.5 | 4 | 0.5 | 10 | 50 | 6 | 2 |
| NNC-2R-D4-R1 | 4 | 1 | 10 | 50 | 4 | 2 |
| NNC-2R-D4-R1 | 4 | 1 | 10 | 50 | 6 | 2 |
| NNC-2R-D5-R0.5 | 5 | 0.5 | 13 | 50 | 5 | 2 |
| NNC-2R-D5-R0.5 | 5 | 0.5 | 13 | 50 | 6 | 2 |
| NNC-2R-D5-R1 | 5 | 1 | 13 | 50 | 5 | 2 |
| NNC-2R-D5-R1 | 5 | 1 | 13 | 50 | 6 | 2 |
| NNC-2R-D6-R0.2 | 6 | 0.2 | 16 | 50 | 6 | 2 |
| NNC-2R-D6-R0.5 | 6 | 0.5 | 16 | 50 | 6 | 2 |
| NNC-2R-D6-R1 | 6 | 1 | 16 | 50 | 6 | 2 |
| NNC-2R-D8-R0.2 | 8 | 0.2 | 20 | 60 | 8 | 2 |
| NNC-2R-D8-R0.3 | 8 | 0.3 | 20 | 60 | 8 | 2 |
| NNC-2R-D8-R0.5 | 8 | 0.5 | 20 | 60 | 8 | 2 |
| NNC-2R-D8-R1 | 8 | 1 | 20 | 60 | 8 | 2 |
| NNC-2R-D10-R0.2 | 10 | 0.2 | 25 | 75 | 10 | 2 |
| NNC-2R-D10-R0.3 | 10 | 0.3 | 25 | 75 | 10 | 2 |
| NNC-2R-D10-R0.5 | 10 | 0.5 | 25 | 75 | 10 | 2 |
| NNC-2R-D10-R1 | 10 | 1 | 25 | 75 | 10 | 2 |
| NNC-2R-D10-R1.5 | 10 | 1.5 | 25 | 75 | 10 | 2 |
| NNC-2R-D10-R2 | 10 | 2 | 25 | 75 | 10 | 2 |
| NNC-2R-D12-R0.5 | 12 | 0.5 | 30 | 75 | 12 | 2 |
| NNC-2R-D12-R1 | 12 | 1 | 30 | 75 | 12 | 2 |
| NNC-2R-D12-R2 | 12 | 2 | 30 | 75 | 12 | 2 |
| NNC-2R-D12-R3 | 12 | 3 | 30 | 75 | 12 | 2 |
| NNC-2R-D16-R1 | 16 | 1 | 45 | 100 | 16 | 2 |
| NNC-2R-D16-R2 | 16 | 2 | 45 | 100 | 16 | 2 |
| NNC-2R-D16-R3 | 16 | 3 | 45 | 100 | 16 | 2 |
| NNC-2R-D20-R1 | 20 | 1 | 50 | 100 | 20 | 2 |
| NNC-2R-D20-R2 | 20 | 2 | 50 | 100 | 20 | 2 |
| NNC-2R-D20-R3 | 20 | 3 | 50 | 100 | 20 | 2 |
| Ábhair Phróiseáilte | Iarann Teilgthe Iarann Teilgthe Nodular | Cruach Carbóin, Cruach Alloy ~750N/mm² | Cruach Carbóin, Cruach Alloy ~30HRC | Cruach Réamh-Chruaite, Cruach Múchta agus Tempered ~40HRC | Cruach Dhosmálta | Cruach Réamh-Chruaite, Cruach Múchta agus Tempered ~50HRC | ||||||
| Trastomhas (mm) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) | Luas Rothlach (mion -1 ) | Luas Feed (mm/nim) |
| 1 | 20000 | 200 | 20000 | 200 | 20000 | 160 | 20000 | 160 | 20000 | 60 | 20000 | 120 |
| 2 | 15000 | 320 | 15000 | 320 | 15000 | 290 | 15000 | 280 | 11150 | 84 | 13000 | 180 |
| 3 | 14000 | 545 | 14000 | 545 | 13000 | 510 | 10600 | 420 | 7500 | 120 | 8500 | 330 |
| 4 | 10800 | 560 | 10800 | 560 | 10000 | 520 | 8000 | 430 | 5500 | 130 | 6500 | 335 |
| 5 | 8200 | 580 | 8200 | 580 | 7600 | 540 | 6400 | 450 | 4500 | 130 | 5000 | 355 |
| 6 | 7000 | 600 | 7000 | 600 | 6400 | 550 | 5300 | 460 | 3700 | 140 | 4200 | 360 |
| 8 | 5200 | 600 | 5200 | 600 | 4800 | 550 | 4000 | 460 | 2800 | 140 | 3200 | 365 |
| 10 | 4200 | 580 | 4200 | 580 | 3800 | 540 | 3200 | 445 | 2200 | 140 | 2500 | 350 |
| 12 | 3500 | 580 | 3500 | 580 | 3200 | 540 | 2650 | 445 | 1850 | 140 | 2100 | 350 |

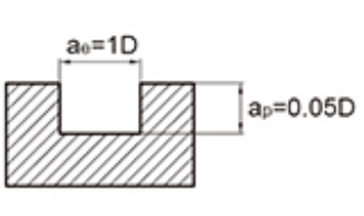

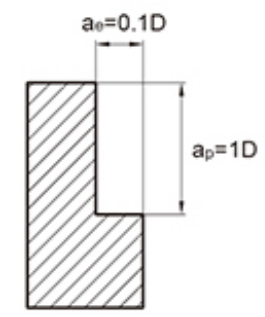

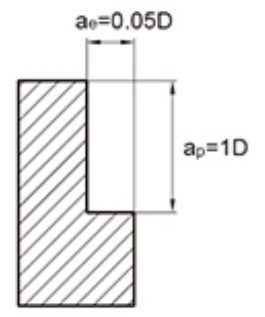

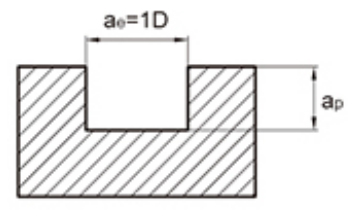

| Doimhneacht Ghearrtha Uasta |  |  | ||||||||||
 | Trastomhas Uirlis | Gearradh Doimhneacht ap |  | |||||||||
∅1| 0. 15d | | |||||||||||
∅3| 0.3D | | |||||||||||
1. Taispeánann an tábla thuas na luachanna caighdeánacha maidir le meaisínithe muilleoireachta taobh. Nuair a ghearradh grooves leis an uirlis, ba chóir go mbeadh an luas 50% ~ 70% den tábla thuas, agus ba cheart go mbeadh an ráta beatha 40% ~ 60% mar an luach caighdeánach.
2. Bain úsáid as uirlisí meaisín ardchruinneas agus sealbhóirí uirlisí.
3. Bain úsáid as fuarú aeir nó sreabhán gearrtha nach lú an seans deataigh a tháirgeadh.
4. Moltar muilleoireacht seicheamhach a úsáid le haghaidh muilleoireachta taobh.
Nuair a bhíonn rigidity an uirlis meaisín agus suiteáil workpiece bocht, d'fhéadfadh creathadh agus fuaim neamhghnácha tarlú. Sa chás seo, ba cheart an luas agus an ráta beathaithe sa tábla thuas a laghdú bliain ar bhliain.
6. Íoslaghdaigh fad an bharrachais uirlisí oiread agus is féidir gan cur isteach.
| Sraith Uirlisí | Trastomhas | Ga | Ga cúinne | Fad an fhliúit | Fad Éifeachtach | Fad Foriomlán | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| Gearrthóirí Muilleoireachta Carbide Uilíoch NNC | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /- 0. 005 | CR0.05~CR0.5 | /- 0. 005 | 0 0.2 | 0 0.3 | 0 0.5 | h5 |
| D1.0~D4.0 | 0 -0.008 | 0 0.3 | 0 0.5 | |||||||
| D1.0~D3.5 | 0 -0.008 | R0.5~R1.75 | /- 0. 005 | CR0.1~CR0.5 | /- 0. 005 | 0 0.3 | 0 0.5 | 0 0.5 | h6 | |
| D4.0~D11.0 | 0 -0.012 | R2.0~R5.0 | /- 0.008 | CR1.0~CR3.0 | /- 0.008 | 0 0.5 | ||||
| D12.0~D20.0 | 0 -0.015 | R6.0~R10.0 | /- 0.01 | |||||||

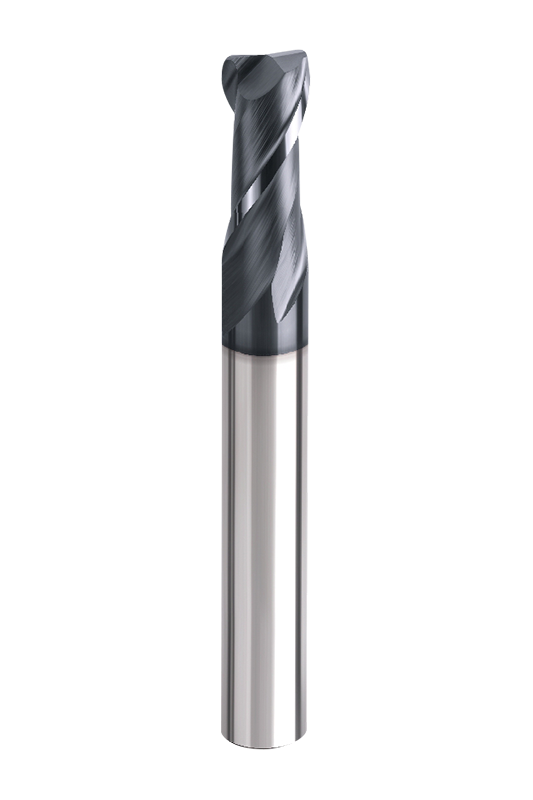

Tairgeann muilte deireadh srón babhta 2-fhliúit NNC-2R éagsúlacht teaglaim trastomhas agus ga chun freastal ar riachtanais mheaisínithe éagsúla. Mar shampla, tá fo-mhúnlaí mar NNC-2R-D1-R0.2 agus NNC-2R-D1.5-R0.5 oiriúnach le haghaidh gearradh beacht i spásanna daingean nó ar phíosaí oibre níos lú, agus tá méideanna níos mó mar NNC-2R-D4-R2 agus NNC-2R-D6-R3 oiriúnach d'iarratais ard-toirte nó cuas domhain. Ceadaíonn an raon leathan sonraíochtaí úsáideoirí a chothromú fad uirlis, gearrtha trastomhas agus ga srón uirlisí chun na torthaí is fearr a bhaint amach do choinníollacha workpiece éagsúla.
Glacann an tsraith céimseata srón cruinn chun an tiúchan strus ag an mbarr uirlisí a laghdú go héifeachtach agus na cosáin gearrtha a bharrfheabhsú, rud a fheabhsóidh éifeachtúlacht meaisínithe. Feabhsaíonn an dearadh imeall dúbailte aslonnú sliseanna sa mhuilleoireacht taobh agus ag an am céanna bailchríoch dromchla den scoth agus cobhsaíocht a chothabháil agus iad ag meaisínithe ar chuair agus comhrianta casta. Cuidíonn an ceannródaíoch cuartha a íoslaghdú chatter agus cinntíonn sé cáilíocht dromchla den scoth fiú faoi choinníollacha beatha ard agus ardluais.
Gné muilte deireadh srón bhabhta 2-fliúit NNC-2R le maitrís gráin fíneáil diana, neamh-chipping (0.6μm) atá cruinneas CNC talamh a chur ar fáil ar chaighdeán comhsheasmhach agus friotaíocht ard chaitheamh. Laghdaíonn ardteicneolaíocht brataithe comhéifeachtaí frithchuimilte agus laghdaítear tógáil teasa, ag leathnú saolré uirlisí.
Tá na muilte deiridh seo oiriúnach le haghaidh oibríochtaí leathchríochnaithe agus críochnaithe ar ábhair choiteanna cosúil le cruach, cruach dhosmálta, cóimhiotail alúmanaim, agus cóimhiotail chopair, agus iad in ann ábhair níos deacra a láimhseáil ar nós cruach cruaite agus cruach bás..
